Electronic Control Systems

Swimming pool accessories, Pool products

SPA Controller

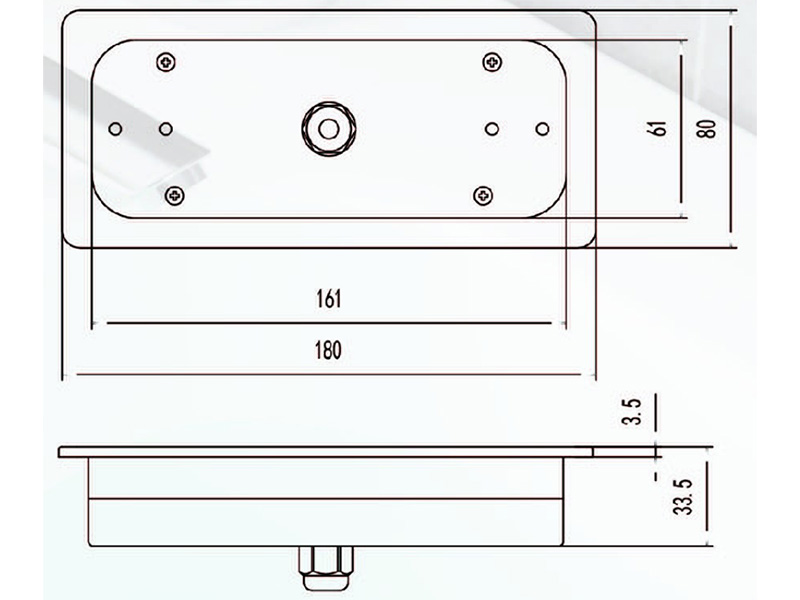

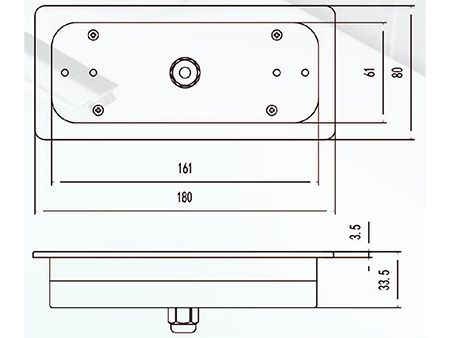

DXD-A008/D
  • SPA Controller
  • SPA Controller

Certificate: CE, TÜV

Model   DXD-A008/D
Operation interface Press button   ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
FM radio Speaker 8Ω/10W MAX ●
CD Speaker 8Ω/10W MAX *
MP3 Speaker 8Ω/10W MAX *
Bluetooth Speaker 8Ω/10W MAX *
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

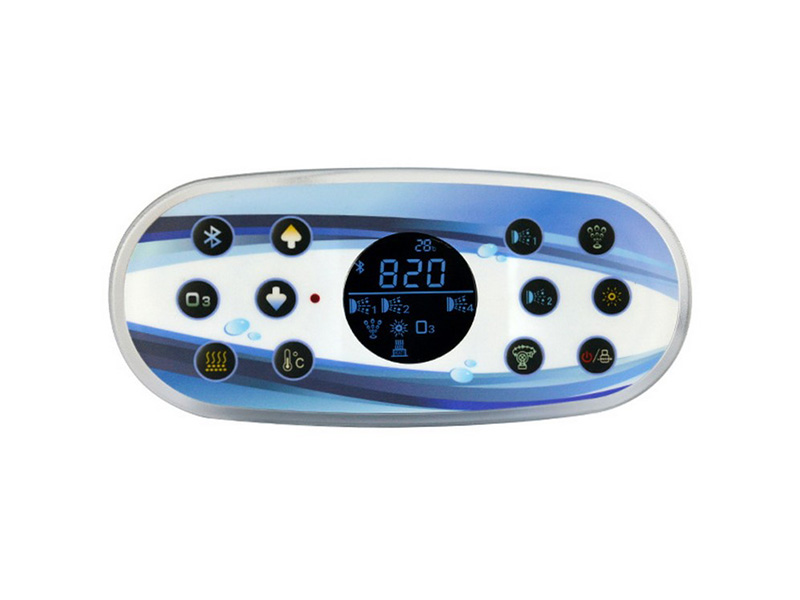

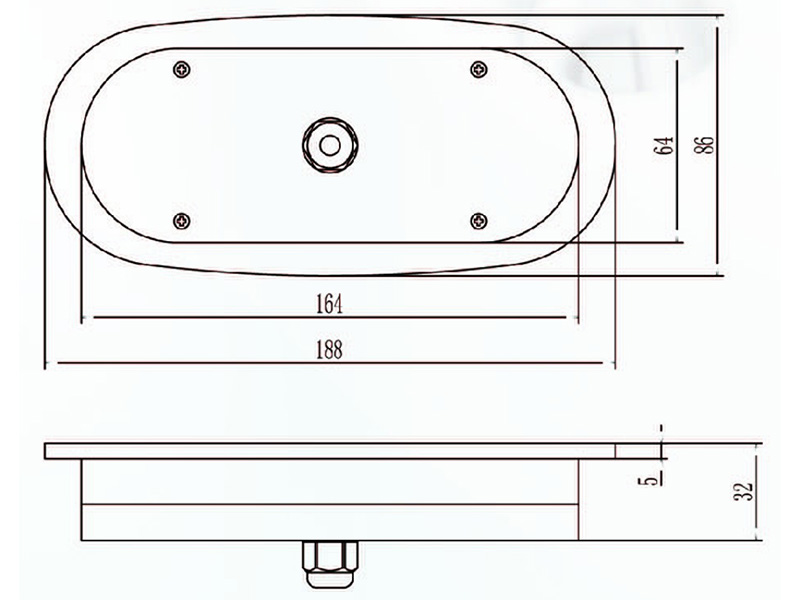

DXD-A010/A
  • SPA Controller
  • SPA Controller

Certificate: CE, TÜV, UL

Model   Model   DXD-A010/A
Operation interface Press button   ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
Bluetooth Speaker 8Ω/10W MAX ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A008/H
  • SPA Controller
  • SPA Controller
Model   DXD-A008/H
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
FM radio Speaker 8Ω/10W MAX ●
CD Speaker 8Ω/10W MAX *
MP3 Speaker 8Ω/10W MAX *
Bluetooth Speaker 8Ω/10W MAX *
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

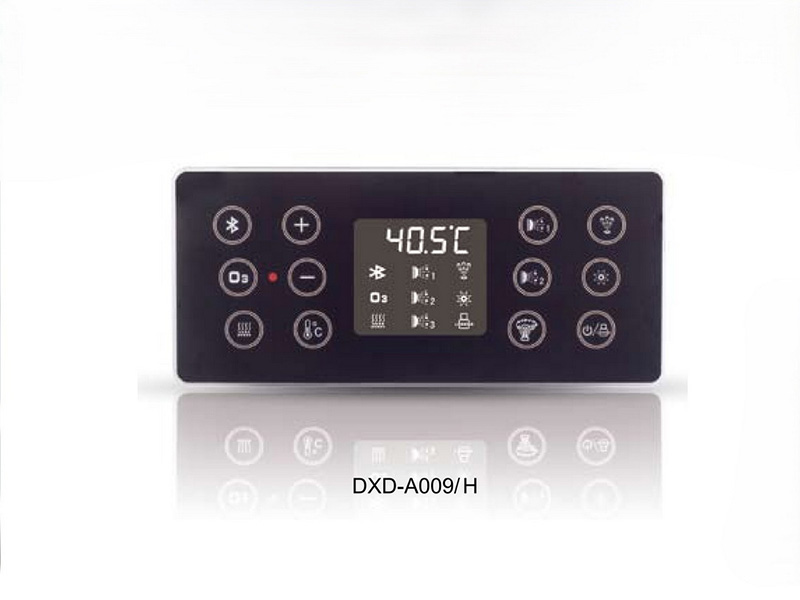

DXD-A009/H
  • SPA Controller
  • SPA Controller

Certificate: CE, TÜV, UL

Model   DXD-A009/H
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
FM radio Speaker 8Ω/10W MAX ●
CD Speaker 8Ω/10W MAX *
MP3 Speaker 8Ω/10W MAX *
Bluetooth Speaker 8Ω/10W MAX ●
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

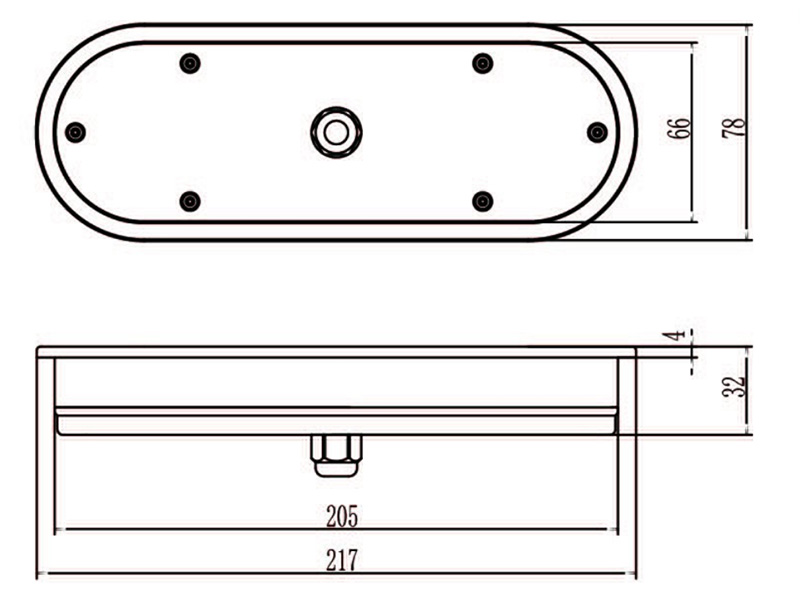

DXD-A130/K
  • SPA Controller
  • SPA Controller

Certificate: CE, TÜV

Model   DXD-A130/K
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
Bluetooth Speaker 8Ω/10W MAX ●
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

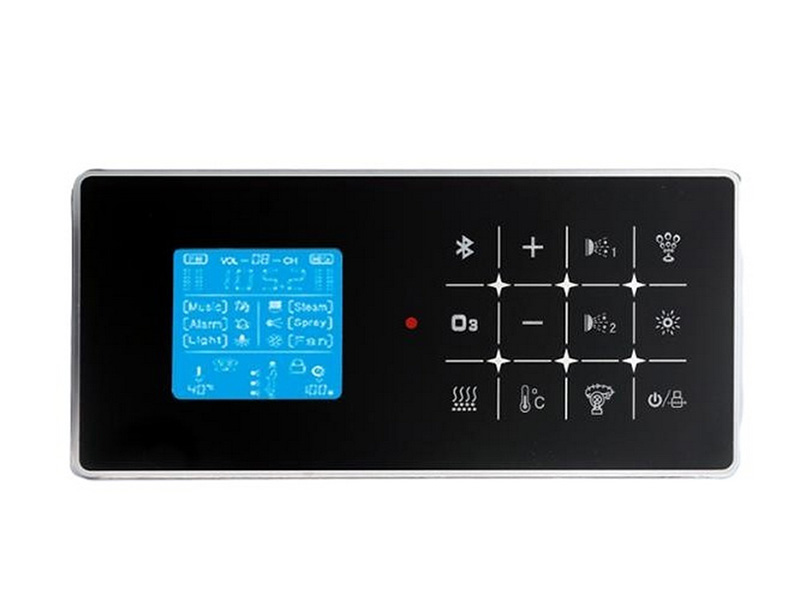

DXD-A021/A
  • SPA Controller
  • SPA Controller
Model   DXD-A021/A
Operation interface Press button Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Circulating pump control Circulating pump AC230V/1HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX ●
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX ●
Auxiliary heating Auxiliary heater AC230V/2000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
Multimedia playback   ●
Remote control by mobile phone WIFI ●
Bluetooth Speaker 8Ω/10W MAX ●
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.
