Electronic Control Systems

Swimming pool accessories, Pool products

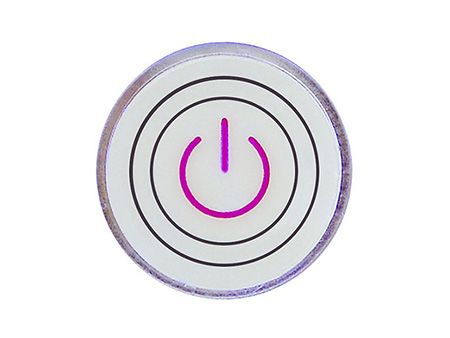

Massage Bathtub Controller

DXD-C003
  • Massage Bathtub Controller
  • Massage Bathtub Controller
Model   DXD-C003 DXD-C006
Operation interface Press button ● ●
Functions Water pump control Water pump AC230V/3HP MAX ● ●
Water pump protection for no water * *
Time control * *
Blower control Blower AC230V/1.5HP MAX * *
Bottom light control Bottom light AC12V/3W MAX * *
Water level measurement Water level probe * *
Capacitive liquid level sensor * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

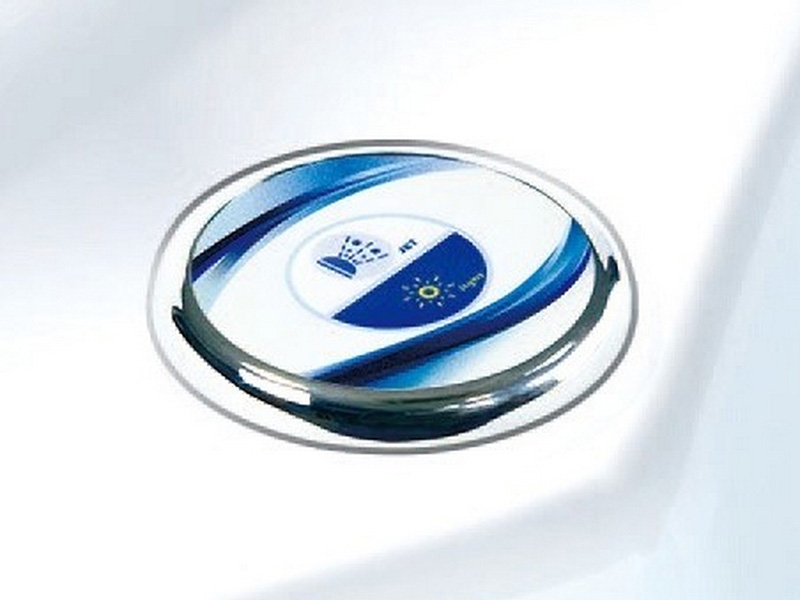

DXD-C006
  • Massage Bathtub Controller
  • Massage Bathtub Controller
Model   DXD-C003 DXD-C006
Operation interface Press button ● ●
Functions Water pump control Water pump AC230V/3HP MAX ● ●
Water pump protection for no water * *
Time control * *
Blower control Blower AC230V/1.5HP MAX * *
Bottom light control Bottom light AC12V/3W MAX * *
Water level measurement Water level probe * *
Capacitive liquid level sensor * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-C005
  • Massage Bathtub Controller
  • Massage Bathtub Controller
Model   DXD-C008 DXD-C005
Operation interface Touch key Capacitive touch key ● ●
Functions Water pump control Water pump AC230V/3HP MAX ● ●
Water pump protection for no water   * *
Time control   * *
Blower control Blower AC230V/1.5HP MAX * *
Bottom light control Bottom light AC12V/3W MAX * *
Water level measurement Water level probe * *
Capacitive liquid level sensor * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

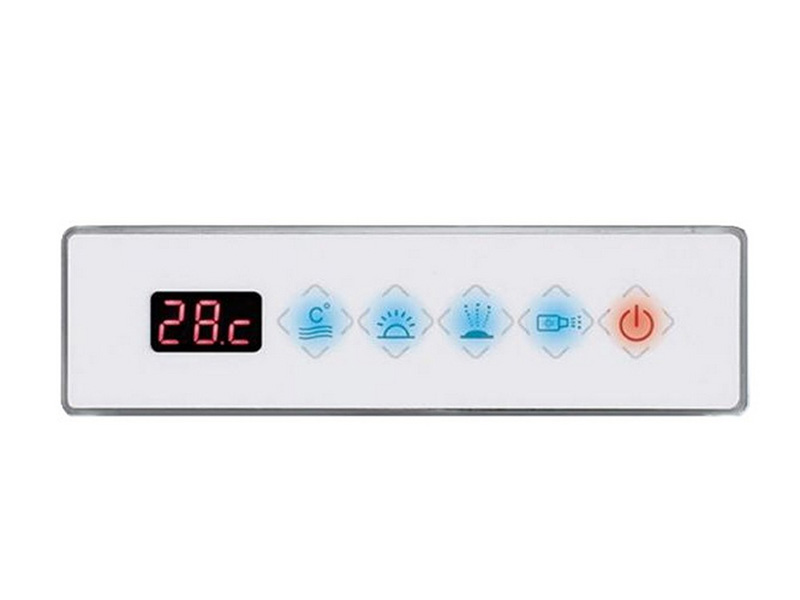

DXD-A006/B
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA

Model   DXD-A006/G DXD-A006/B DXD-A006/M
Operation interface Press button     ●
Touch key Capacitive touch key ●   ●
Functions Water pump control Water pump AC230V/3HP MAX ● ● ●
Blower control Blower AC230V/1.5HP MAX ● ● ●
Bottom light control Bottom light AC12V/3W MAX * ● ●
Ozone control Ozone generator AC12V/9W MAX * * *
Air regulation Air regulator AC12V/3W MAX * * *
Solenoid valve DC12V/7W MAX * * *
Thermostatic heating Thermostatic heater
AC230V/3000W MAX		   ● ●
Auto cleaning Clean valve DC12V/7W MAX * * *
Water level measurement Water level probe * * *
Capacitive liquid level sensor * * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A006/M
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA, UL

Model   DXD-A006/G DXD-A006/B DXD-A006/M
Operation interface Press button     ●
Touch key Capacitive touch key ●   ●
Functions Water pump control Water pump AC230V/3HP MAX ● ● ●
Blower control Blower AC230V/1.5HP MAX ● ● ●
Bottom light control Bottom light AC12V/3W MAX * ● ●
Ozone control Ozone generator AC12V/9W MAX * * *
Air regulation Air adjust Air regulator AC12V/3W MAX * * *
Solenoid valve DC12V/7W MAX * * *
Thermostatic heating Thermostatic heater AC230V/3000W MAX   ● ●
Auto cleaning Clean valve DC12V/7W MAX * * *
Water level measurement Water level probe * * *
Capacitive liquid level sensor * * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A013
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA

Model   DXD-A013/A DXD-A013/C
Operation interface Press button   ● ●
Functions Water pump control Water pump AC230V/3HP MAX ● ●
Blower control Blower C230V/1.5HP MAX ● ●
Bottom light control Bottom light AC12V/3W MAX ● ●
Ozone control Ozone generator AC12V/9W MAX * *
Air regulation Air regulator AC12V/3W MAX * *
Solenoid valve DC12V/7W MAX * *
Thermostatic heating Thermostatic heater
AC230V/3000W MAX		 * *
Auto cleaning Clean valve DC12V/7W MAX * *
FM radio Speaker 8Ω/10W MAX ● ●
CD Speaker 8Ω/10W MAX * *
MP3 Speaker 8Ω/10W MAX * *
Bluetooth Speaker 8Ω/10W MAX * *
Remote control   * *
Water level measurement Water level probe * *
Capacitive liquid level sensor * *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A022/B
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA

Model   DXD-A022/B
Operation interface Press button   ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control BlowerAC230V/1.5HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX *
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

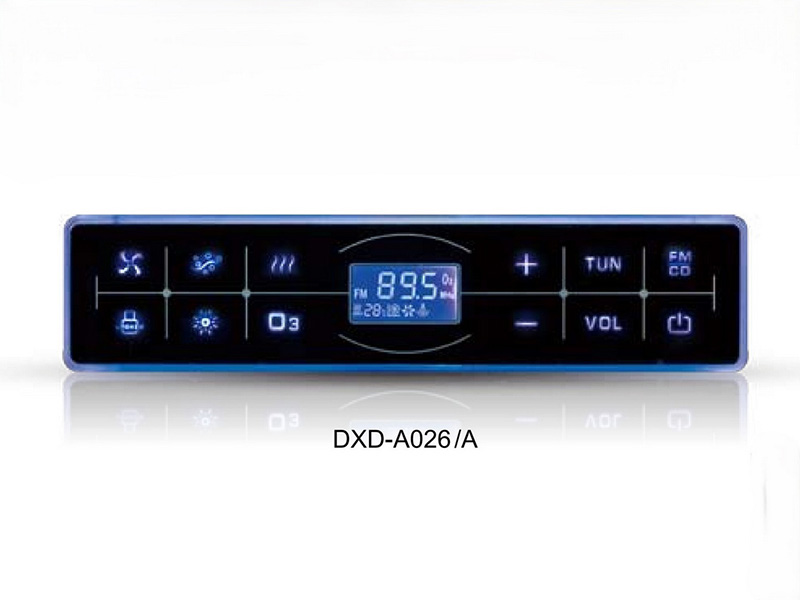

DXD-A026/A
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA

Model   DXD-A026/A
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX *
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
FM radio Speaker 8Ω/10W MAX ●
CD Speaker 8Ω/10W MAX *
MP3 Speaker 8Ω/10W MAX *
Bluetooth Speaker 8Ω/10W MAX *
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

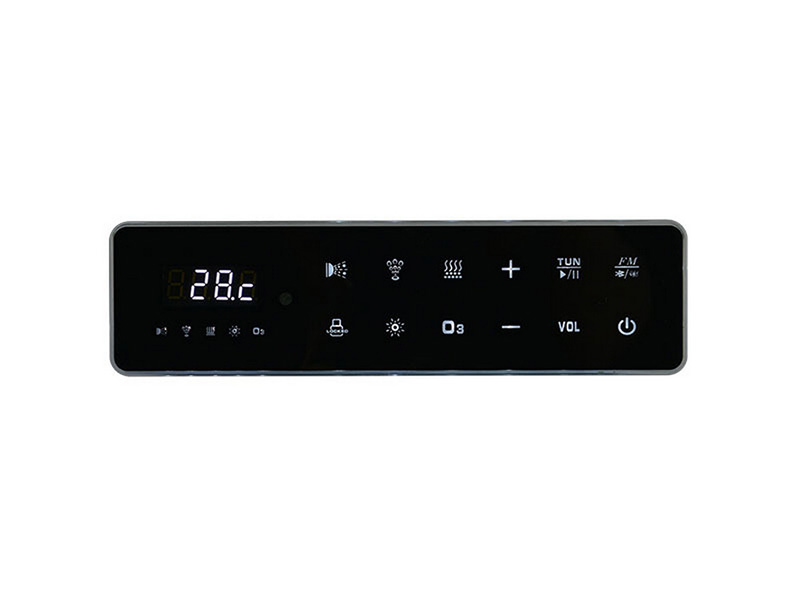

DXD-A032/A
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UKCA

Model   DXD-A032/A
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX *
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
FM radio Speaker 8Ω/10W MAX ●
CD Speaker 8Ω/10W MAX *
MP3 Speaker 8Ω/10W MAX *
Bluetooth Speaker 8Ω/10W MAX *
Child lock   ●
Remote control   *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A033/A
  • Massage Bathtub Controller
  • Massage Bathtub Controller

Certificate: CE, TÜV, UL, UKCA

Model   DXD-A033/A
Operation interface Touch key Capacitive touch key ●
Functions Water pump control Water pump AC230V/3HP MAX ●
Blower control Blower AC230V/1.5HP MAX ●
Bottom light control Bottom light AC12V/3W MAX ●
Ozone control Ozone generator AC12V/9W MAX *
Air regulation Air regulator AC12V/3W MAX *
Solenoid valve DC12V/7W MAX *
Thermostatic heating Thermostatic heater AC230V/3000W MAX *
Auto cleaning Clean valve DC12V/7W MAX *
Water level measurement Water level probe *
Capacitive liquid level sensor *

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.
