Deep Bed Sand Filter, CB-H07400

Deep Bed Sand Filter, CB-H07400

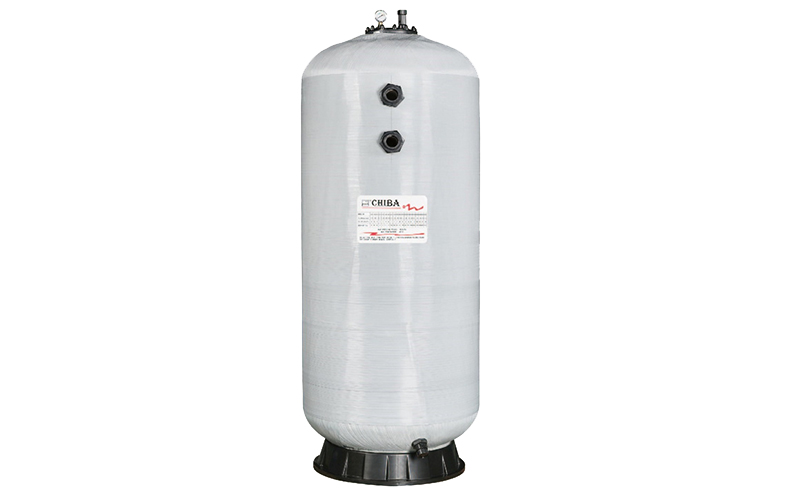

The tank of deep bed sand filters is made using fiber glass reinforced plastics, making it corrosion resistant, abrasion resistant, deforming-proof, etc. The tank height can be customized upon request. The unique water distribution system allows for a stable and even water flow, maximizing the efficiency of the drain system. Featuring easy installation and maintenance, the outlet turbidity is less than 2FTU.

With proven product quality and performance, we are confident to offer:
  • Pool equipment wholesale for distributors
  • Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
  • OEM service for branded suppliers and manufacturers of pool equipment and supplies
  • Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Working Conditions
  • Maximum working pressure: 2.5kg/cm² (35psi)
  • (working pressure of 4kg/cm² is available as per request)
  • Maximum temperature: 45°C
  • Deep Bed Sand Filter, CB-H07400
  • Deep Bed Sand Filter, CB-H07400

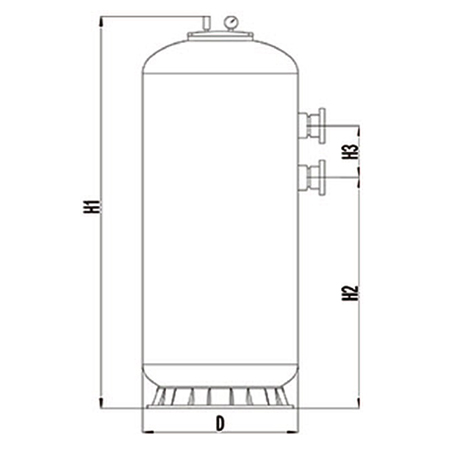

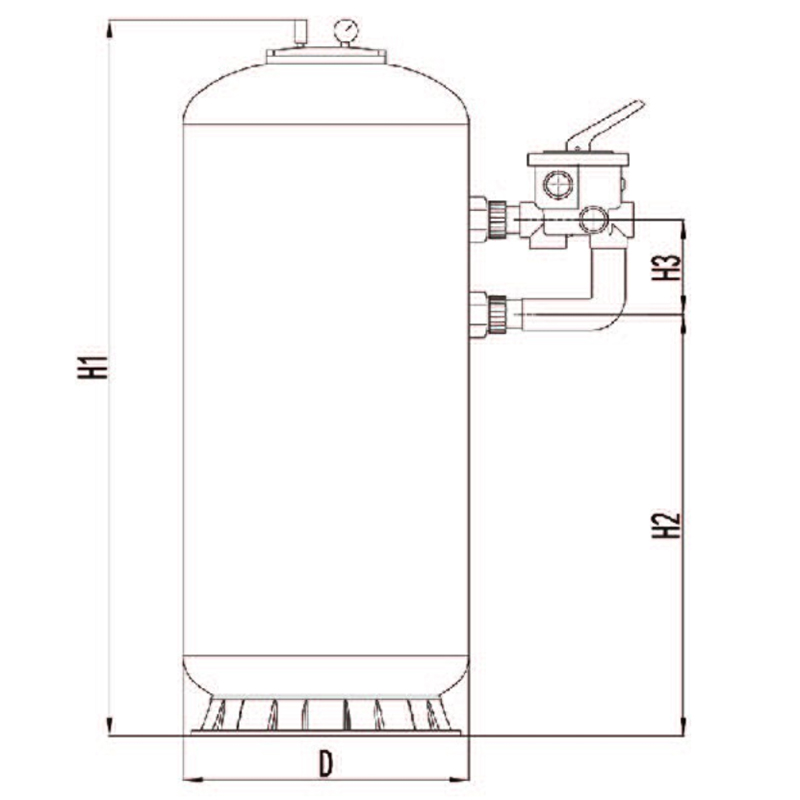

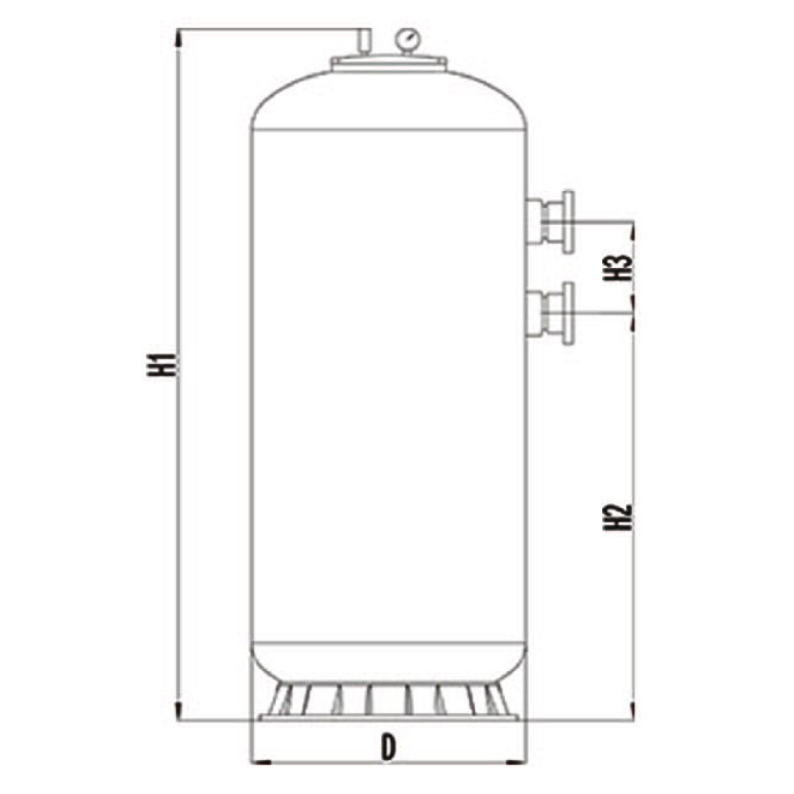

Technical data
Model Tank diameter Tank height Flow Filter area Connections Required sand Package
mm inch mm inch m³/h GPM m² sq.ft mm inch kg mm
CB-H07400 400 21.7 900 35.4 8 35 0.13 1.3 50 1.5" 95 500×500×1000
CB-H08600 600 23.6 1300 51.2 14 62 0.22 2.2 50 1.5" 315 700×700×1400
CB-H09700 700 27.6 1600 63.0 19 84 0.35 3.4 50 1.5" 450 800×800×1750
CB-H11800 800 31.5 1800 70.9 24 106 0.5 4.9 63 2" 620 900×900×1900
CB-H12900 900 35.4 2100 82.7 30 132 0.64 6.3 63 2" 850 1000×1000×2250
CB-H131050 1050 41.3 2100 82.7 38 167 0.88 8.6 63 2" 1450 1150×1150×2250
CB-H151200 1200 47.2 2100 82.7 42 185 1.13 11.1 63 2" 2150 1300×1300×2250
CB-H161400 1400 55.1 2100 82.7 56 246 1.25 12.3 90 3" 2650 1500×1500×2250
