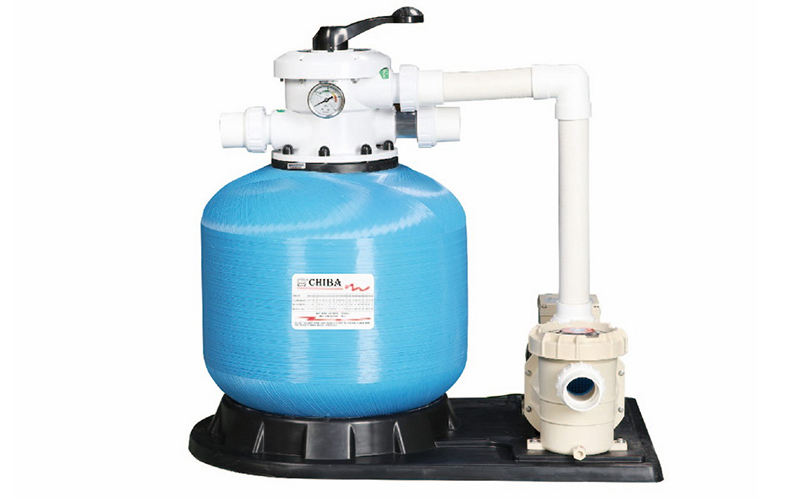

- Sand Filter, Series CNC-IT400
The one-piece sand filter connects the sand filter to the swimming pool pump via a fiberglass base, thus increasing the installation efficiency. This sand filter is designed to filter out suspended impurities that are more than 40um in diameter. It is commonly used for filtering aquaculture wastewater, industrial wastewater, and drinking water.

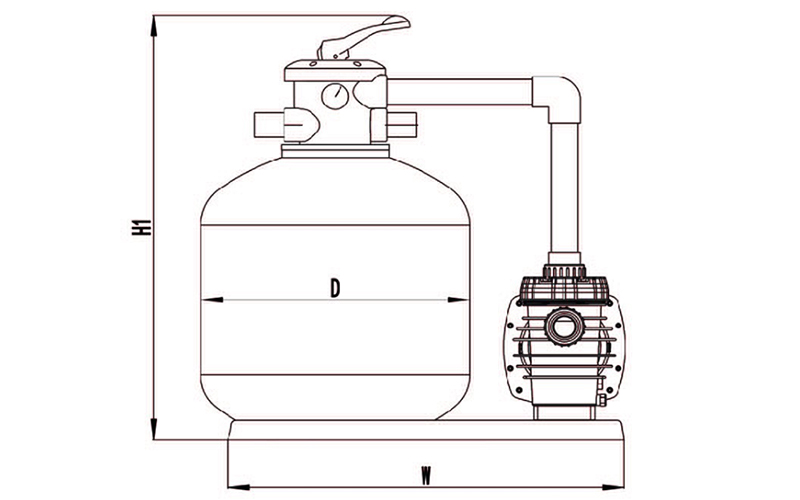

Model | Installation size(mm) | Model | Tank diameter | Tank height | Flow | Filter area | Connections | Required sand | Package | Motor power | ||||||||||
D | H1 | W | mm | inches | mm | inches | m3/h | GPM | m2 | sq.ft | mm | inches | kg | lbs | mm | inches | Hp | Kw | ||
CNC-IT400 | 400 | 680 | 650 | CNC-IT400 | 400 | 15.7 | 680 | 26.8 | 8 | 35 | 0.13 | 1.3 | 50 | 1.5〞 | 35 | 77 | 700*650*750 | 28*26*30 | 0.5 | 0.3 |
CNC-IT450 | 450 | 680 | 650 | CNC-IT450 | 450 | 17.7 | 740 | 29.1 | 10 | 44 | 0.16 | 1.6 | 50 | 1.5〞 | 50 | 110 | 700*650*750 | 28*26*30 | 0.5 | 0.3 |
CNC-IT500 | 500 | 8680 | 710 | CNC-IT500 | 500 | 19.7 | 820 | 32.3 | 11 | 48 | 0.18 | 1.8 | 50 | 1.5〞 | 58 | 128 | 760*650*930 | 30*26*37 | 1 | 0.75 |
CNC-IT525 | 525 | 865 | 710 | CNC-IT525 | 525 | 20.7 | 865 | 34.1 | 12 | 53 | 0.19 | 1.9 | 50 | 1.5〞 | 65 | 143 | 760*650*930 | 30*26*37 | 1 | 0.75 |
CNC-IT550 | 550 | 865 | 710 | CNC-IT550 | 550 | 21.7 | 880 | 34.6 | 13 | 57 | 0.2 | 2 | 50 | 1.5〞 | 87 | 192 | 760*650*930 | 30*26*37 | 1.5 | 1 |
CNC-IT600 | 600 | 885 | 810 | CNC-IT600 | 600 | 23.6 | 885 | 34.8 | 14 | 62 | 0.22 | 2.2 | 50 | 1.5〞 | 115 | 254 | 760*650*930 | 30*26*37 | 1.5 | 1 |
CNC-IT625 | 625 | 885 | 810 | CNC-IT625 | 625 | 24.6 | 920 | 36.2 | 16 | 70 | 0.3 | 2.9 | 50 | 1.5〞 | 130 | 287 | 860*650*960 | 34*26*38 | 2 | 1.5 |
CNC-IT650 | 650 | 930 | 810 | CNC-IT650 | 650 | 25.6 | 950 | 37.4 | 17 | 75 | 0.32 | 3.1 | 50 | 1.5〞 | 145 | 320 | 920*680*1000 | 36*27*39 | 2 | 1.5 |
As a professional pool and spa equipment manufacturer founded in 1999, we are committed to the design and manufacture of swimming pool pump, spa pump, whirlpool bath pump, sand filter and related accessories. If you are a contractor for swimming pools, Spa tubs, and message bathtubs, DXD is the right place to offer you wholesale pool equipment and accessories at affordable prices. Not only do we provide one of hot tub, SPA and pool equipment and accessories, we can also offer a complete set of products to meet the needs of your swimming pools, Spa houses, etc. Our high quality pool and spa equipment has passed various certifications including CE, TUV, UL, ETL, CSA, SAA, KC, etc.
We look to working with distributors in overseas markets to create win-win success.
